Digital Microscope - Standard Working Distance/ 10x-70x & 200x / Metal | AM4013MZT

Digital Microscope with standard working distance, handheld design for portability, featuring up to 200x magnification power. Ideal for non-destructive analysis, highly precise cleaning, characterisation tests and condition recording.

  • 1.3 megapixel sensor providing 1280x1024 pixel resolution, capture video (30fps) and still images
  • 10x-70x, 200x magnification (10x - 70x continuous, 200x fixed)
  • Polarizer filter allows you to reduce or eliminate glare on reflective surfaces and also can provide the ability to see through the surface of fully or partially transparent materials, such as textiles, paint, glass, and plastic
  • Complete with software (Windows and Mac compatible - read more here) and all necessary cables, simple USB 2.0 setup
  • Annotate and measure images to 0.001mm
  • Tough aluminium metal housing with simple to operate dials for focus and polarisation
  • 8 (white) LED illumination which can be switched on or off

More details in 'Specification' tab below.

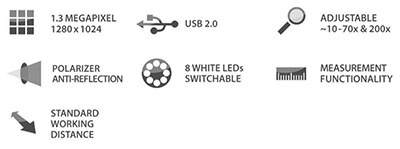

microscope specification

The handheld digital microscope is portable and ideal for use in situations outside of a studio (when plugged into a laptop) for examining large or immovable objects, such as stonework.

Available Accessories: Stands & stand accessories (see 'Recommended' items below), Image capture footswitch for hands-free operation (see below), WiFi streamer for wireless video streaming to mobile or desktop devices.

Read More
Digital Microscope AM4013MZT
P873-4013MZT 873-4013MZT
Pack Size: Each Price: £423.00 ex VAT In Stock 48hr
Accessories to fit
Microscope Stand RK-06A
P873-RK-06A 873-RK-06A
Pack Size: Each Price: £159.00 ex VAT Due in Stock
Microscope Stand RK-10A
P873-RK-10A 873-RK-10A
Pack Size: Each Price: £230.00 ex VAT Low Stock
Microscope Stand MS35B
P873-MS35B 873-MS35B
Pack Size: Each Price: £95.00 ex VAT Due in Stock
Microscope Stand MS52BA2
P873-MS52BA2 873-MS52BA2
Pack Size: Each Price: £320.00 ex VAT In Stock 48hr
Microscope Stand RK-02
P873-RK-02 873-RK-02
Pack Size: Each Price: £110.00 ex VAT In Stock 48hr
Microscope Wifi Streamer
P873-WF-10 873-WF-10
Pack Size: Each Price: £221.00 ex VAT In Stock 48hr
Microscope Foot Switch
P873-SW-F1 873-SW-F1
Pack Size: Each Price: £45.00 ex VAT In Stock 48hr
MAGNIFICATION RATE WORKING DISTANCE FIELD OF VIEW(X) FIELD OF VIEW(Y) DEPTH OF FIELD
20 48.7 19.8 14.9 3.6
30 21.7 13.2 9.9 1.9
40 9.0 9.9 7.4 -
50 1.9 7.9 5.9 0.88
60 -2.3 6.6 5.0 -
220 -0.1 1.8 1.4 0.20
230 1.0 1.7 1.3 -
240 2.1 1.7 1.2 -

Measurements in mm

LIGHTING

  • Light/ LED type: White
  • Number of LEDs: 8
  • LED on/off switchable: Yes
  • Infrared filter: IR cut-filter >650 nm
  • Diffuser available: MSAA111A2 (optional accessory)
  • Emission filter: No
  • Polarizer: Yes, linear

    OPTICS

  • Magnification: 10-70x, 200x
  • Macro zoom: No
  • Working distance: Standard
  • Lens type: Glass with anti-reflection coating

    SENSOR

  • Sensor type: CMOS
  • Resolution: 1.3 Megapixel (1280x1024)
  • Maximum frame rate: 30 fps

    COMPATIBILITY

  • Interface: USB 2.0
  • Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
  • Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
  • Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
  • Supported video formats (Windows): WMV, FLV, SWF
  • Supported image formats (MacOS): JPEG, PNG
  • Supported video formats (MacOS): MOV
  • Imaging standards: DirectShow, UVC

    HOUSING

  • Housing material: Metal housing
  • Magnification lock: No
  • Dimensions: 10.5cm (L) x 3.2cm (D)
  • Weight: 140g
  • Cable length: 1.8m

    FEATURES

  • Special feature: No
  • Measurement: Yes
  • Calibration: Yes
  • Microtouch sensor: Yes
  • ESD safe: Yes

    INFORMATION

  • Package contents: Microscope, Carry pouch, Software CD, Calibration target, ZT-Z-CC1 Cap closure, User manual
  • Regulatory approval: CE, FCC, ROHS
