Digital Microscope - UV+White LED / Standard Working Distance / 20x-220x / Metal | AM7115MT-FUW

Digital Microscope with standard working distance, handheld design for portability, featuring UV + White led lighting and up to 220x magnification power. Ideal for non-destructive analysis, characterisation tests and condition recording.

With LED lighting, switchable between white and UV light. This model has a filter to filter out the returning UV light so that an image with natural colours can be obtained.

This high quality handheld microscope also features a rugged metal housing. Comes with interchangeable caps for protection from dust and liquids, alternative lighting and magnification, plus a precision calibration target.

UV (375nm) and white LED lighting
Additional caps allow further flexibility in use, i.e. sealed caps for dusty environments or protection from liquids
High resolution 5megapixel sensor providing 2592x1944 pixel resolution, capture video (30fps) and still images
20x - 220x magnification
Complete with software (Windows and Mac compatible - read more here) and all necessary cables, simple USB 2.0 setup
Annotate and measure images to 0.001mm
Aluminium alloy housing with simple to operate dial for focus

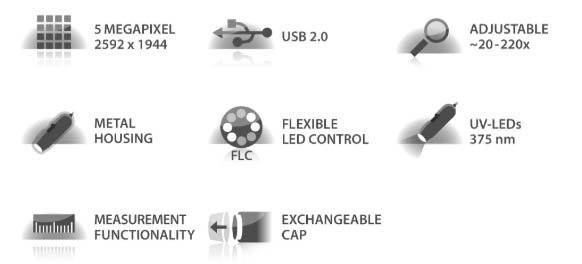

microscope specification

More details in 'Specification' tab below.

Available Accessories: Stands & stand accessories (see 'Recommended' items below), Image capture footswitch for hands-free operation (see below), WiFi streamer for wireless video streaming to mobile or desktop devices.

Code	Description	Pack Size	Price	Stock
P873-7115MT-FUW 873-7115MT-FUW	Microscope Special Lighting Dino-Lite AM7115MT-FUW P873-7115MT-FUW 873-7115MT-FUW	Pack Size: Each	Price: £710.00 ex VAT	In-stock 14 days
Accessories to fit
P873-RK-06A 873-RK-06A	Microscope Stand RK-06A P873-RK-06A 873-RK-06A	Pack Size: Each	Price: £159.00 ex VAT	Low Stock
P873-RK-10A 873-RK-10A	Microscope Stand RK-10A P873-RK-10A 873-RK-10A	Pack Size: Each	Price: £230.00 ex VAT	In Stock 48hr
P873-MS35B 873-MS35B	Microscope Stand MS35B P873-MS35B 873-MS35B	Pack Size: Each	Price: £95.00 ex VAT	In Stock 48hr
P873-MS52BA2 873-MS52BA2	Microscope Stand MS52BA2 P873-MS52BA2 873-MS52BA2	Pack Size: Each	Price: £320.00 ex VAT	In Stock 48hr
P873-RK-02 873-RK-02	Microscope Stand RK-02 P873-RK-02 873-RK-02	Pack Size: Each	Price: £110.00 ex VAT	Low Stock
P873-WF-10 873-WF-10	Microscope Wifi Streamer P873-WF-10 873-WF-10	Pack Size: Each	Price: £221.00 ex VAT	In Stock 48hr
P873-SW-F1 873-SW-F1	Microscope Foot Switch P873-SW-F1 873-SW-F1	Pack Size: Each	Price: £50.00 ex VAT	In Stock 48hr

Recommended
Specification
Alternatives

Microscope Stand - Professional Mid Range

£159.00 ex VAT

Microscope stand RK-10 with extension arm

Microscope Stand - High Precision

£230.00 ex VAT

Microscope Stand Accessories

From £18.00 ex VAT

Microscope Stand

£95.00 ex VAT

Microscope Stand - Professional Articulated Arm

£320.00 ex VAT

Microscope Stand - Flexi-arm with bench bracket

£110.00 ex VAT

WiFi Streamer for Digital Microscopes - Cast to PC/Tablet/Mobile

£221.00 ex VAT

Digital Microscope Footswitch

£50.00 ex VAT

MAGNIFICATION RATE	WORKING DISTANCE	FIELD OF VIEW(X)	FIELD OF VIEW(Y)	DEPTH OF FIELD
Listed values may differ slightly		* Without front cap			Unit = mm
20	60.2	19.5	14.6	2.5
30	33.5	13.0	9.7	1.8
40	20.9	9.8	7.3	1.5
50	13.9	7.8	7.8	-
60	9.7	6.5	5.8	-
70	7.1	5.6	4.2	1.0
80	5.5	4.9	3.6	-
90	4.5	4.3	3.2	-
100	4.1	3.9	2.9	-
110	4.0	3.6	2.7	-
120	4.1	3.3	2.4	-
130	4.5	3.0	2.2	-
140	5.0	2.8	2.1	-
150	5.6	2.6	1.9	-
160	6.3	2.4	1.8	-
170	7.1	2.3	1.7	-
180	8.0	2.2	1.6	-
190	8.9	2.1	1.5	-
200	9.9	2.0	1.5	-
210	10.9	1.9	1.4	-
220	11.9	1.8	1.3	-

LIGHTING

Light/ LED type: ~390 nm UV + white
Number of LEDs: 4+4
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: Yes, Emission barrier filter 375 nm
Polarizer: No
OPTICS
Magnification: 20-220x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflection coating
SENSOR
Sensor type: CMOS
Resolution: 5 Megapixel (2592x1944)
Maximum frame rate: 30 fps
COMPATIBILITY
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: -
HOUSING
Housing material: Metal housing
Magnification lock: Yes
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 140g
Cable length: 1.8m
FEATURES
Special feature: No
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: Yes
INFORMATION
Package contents: Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Regulatory approval: CE, FCC, ROHS
